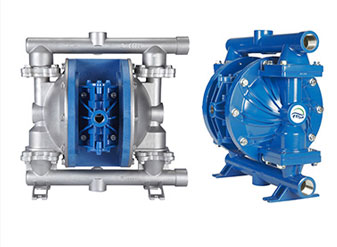

FTI Air Model FT10 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. Pumps are available with 316 stainless steel or aluminum wetted materials. Diaphragms, balls and seats are available in a wide range of materials to provide reliable operation in a wide variety of applications. FTI Air products have fewer parts, simpler design and are less prone to failure.
Specifications
Suction & Discharge Siz : 1” x 1”
Porting Location* : End
Connection Types* : FNPT, FBSPT
Air Inlet & Air Exhaust Size : 1/2” FNPT x 1/2” FNPT
* Optional NPT or BSP threaded center port location in either horizontal or vertical position
Capabilities
Maximum Flow Rate : 51 gpm (193 lpm)
Maximum Air Supply Pressure : 120 psi (8.3 bar)
Displacement Per Stroke : 0.084 gal (0.32 lit)
Minimum Air Inlet Pressure : 10 psig (0.7 bar)
Maximum Particle Size : 0.25” (6.4mm)
Sound Pressure : 73.6 dB(A)
Operating Temperature : Determined by elastomers
Construction
Wetted Materials : 316SS or Aluminum
Diaphragm Materials : Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials : Neoprene, Buna, Santoprene™, FKM, EPDM, PTFE
Seat Materials : Aluminum, 316SS, PTFE
O-ring Materials Neoprene, Buna, FKM, EPDM, PTFE, FEP/FKM
Dimensions & Weights
316 Stainless Steel Aluminum
Maximum Height : 14-3/16” (360 mm) 14-13/32” (366 mm)
Maximum Width : 14-5/16” (364 mm) 14-3/4” (375 mm)
Maximum Depth : 10-11/16” (271 mm) 10-11/16” (271 mm)
Weight: 48.7 lb (22.1 kg) 34.2 lb (15.5 kg)

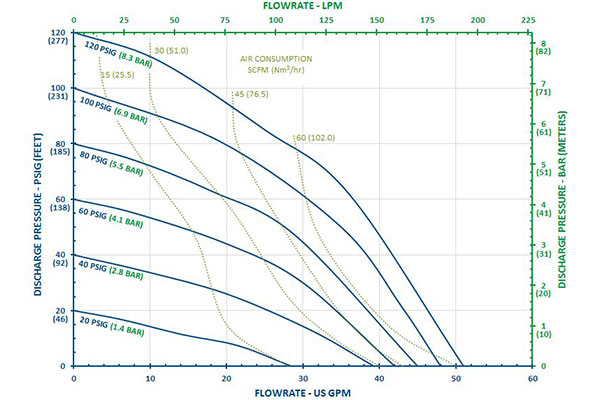

Performance

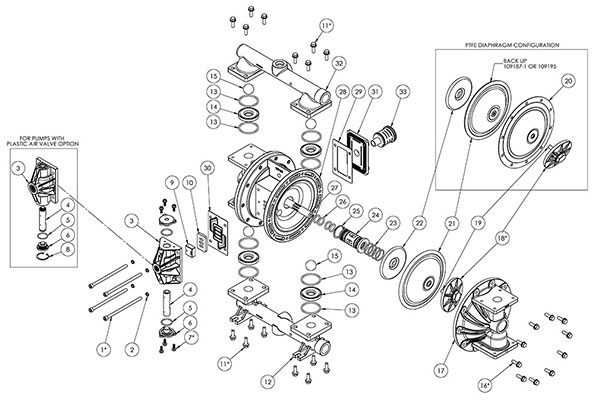

Spare Parts
