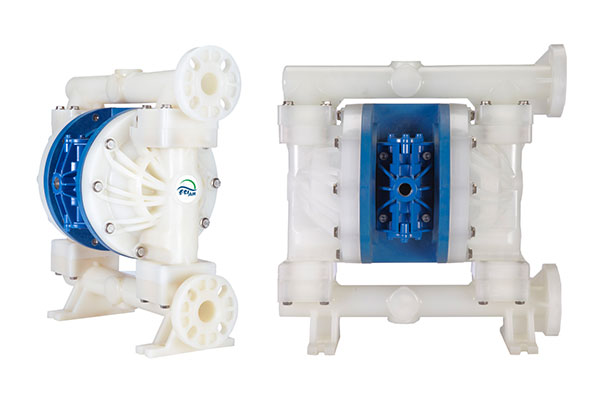

FTI Air Model FT10 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. Pumps are available with polypropylene or PVDF wetted materials. Diaphragms, balls and seats are available in a wide range of materials to provide reliable operation in a wide variety of applications. FTI Air products have fewer parts, simpler design and are less prone to failure.





Specifications

Suction & Discharge Size : 1” x 1”
Porting Location* : End
Connection Types : ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size : 1/2” FNPT x 1/2” FNPT
*Optional NPT or BSP threaded center port location in either horizontal or vertical position

Capabilities
Maximum Flow Rate : 49 gpm (185 lpm)
Maximum Air Supply Pressure : 100 psi (6.9 bar)
Displacement Per Stroke : 0.084 gal (0.32 lit)
Minimum Air Inlet Pressure : 10 psig (0.7 bar)
Maximum Particle Size : 0.25” (6.4 mm)
Sound Pressure : 73.6 dB(A)
Operating Temperature : Determined by elastomers

Construction
Wetted Materials : Polypropylene, PVDF
Diaphragm Materials : Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, polyurethane
Air Valve : GFRPP, Aluminum
Ball Materials : Neoprene, Buna, FKM, EPDM, Santoprene™, PTFE
Seat Materials : Polypropylene, PVDF
O-ring Materials Buna, FKM, Santoprene™, polyurethane, FEP/FKM

Dimensions & Weights
Maximum Height : 17-7/8” (454 mm)
Maximum Width : 16-13/16” (427 mm)
Maximum Depth : 10-11/16” (271 mm)
Weight – Polypropylene : 24.0 lb (10.9 kg)
Weight – PVDF : 34.1 lb (15.5 kg)

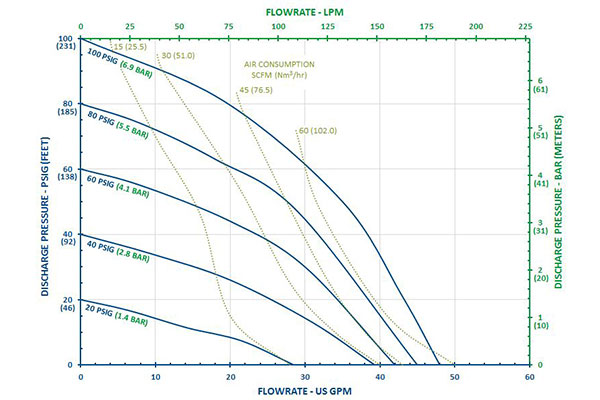

Performance

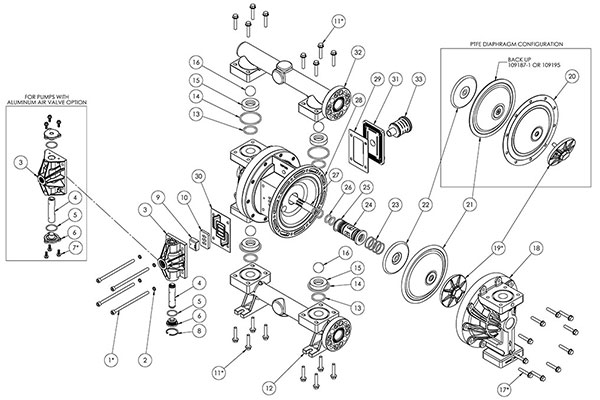

Spare Parts
