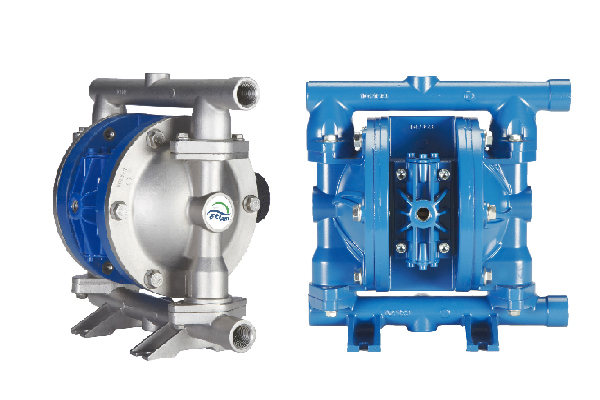

FTI Air Model FT05 metal pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. Pumps are available with aluminum or 316 stainless steel wetted materials. Diaphragms, balls and seats are available in a wide range of materials to provide reliable operation in a wide variety of applications. FTI Air products have fewer parts, simpler design and are less prone to failure.
Specifications
Suction & Discharge Size : 1/2” x 1/2”
Porting Location* : End
Connection Types : NPT, BSP
Air Inlet & Air Exhaust Size : 1/4” FNPT x 1/4” FNPT
*Optional NPT or BSP threaded center port location in either horizontal or vertical position
Capabilities
Maximum Flow Rate : 20 gpm (76 lpm)
Maximum Air Supply Pressure : 120 psi (8.3 bar)
Displacement Per Stroke : 0.026 gal (0.10 lit)
Minimum Air Inlet Pressure : 10 psig (0.7 bar)
Maximum Particle Size : 0.19″ (4.7 mm)
Sound Pressure : 72.1 dB(A)
Operating Temperature : Determined by elastomers
Construction
Wetted Materials : Aluminum, 316SS
Diaphragm Materials : Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, polyurethane
Air Valve : GFRPP, Aluminum
Ball Materials : Neoprene, Buna, FKM, EPDM, Santoprene™, PTFE
Seat Materials : Aluminum, 316SS, PTFE
O-ring Materials : Neoprene, Buna, FKM, EPDM, PTFE, FEP/FKM
Dimensions & Weights
Maximum Height : 9-27/32” (250 mm)
Maximum Width : 9-5/8” (245 mm)
Maximum Depth : 6-11/16” (170 mm)
Weight – Aluminum : 11.7 lb (5.3 kg)
Weight – Stainless Steel : 15.5 lb (7.0 kg)

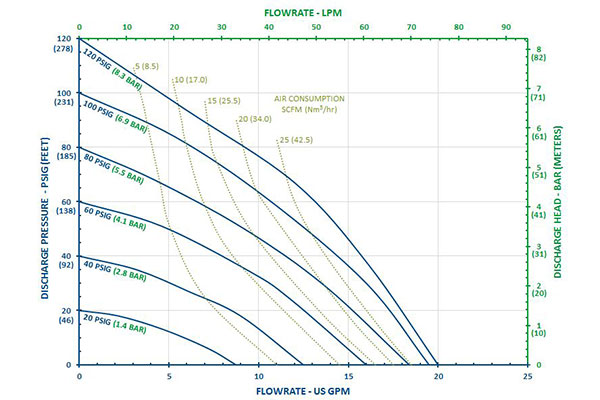

Performance

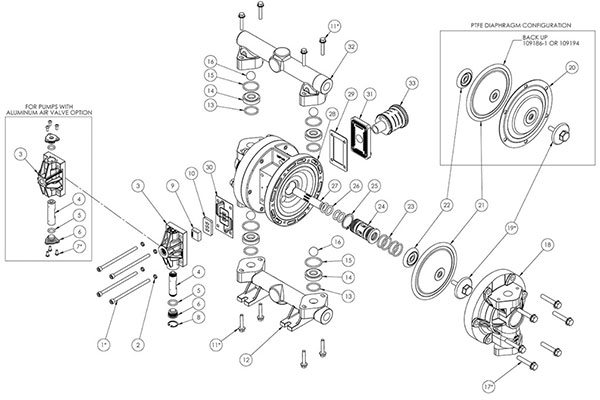

Spare Parts
