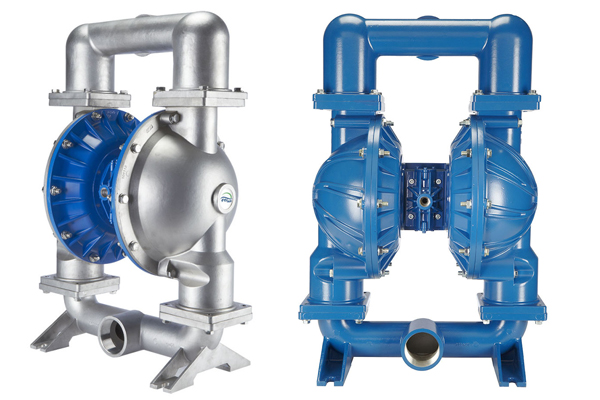

FTI Air Model FT30 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. Pumps are available with 316 stainless steel or aluminum wetted materials. Diaphragms, balls and seats are available in a wide range of materials to provide reliable operation in a wide variety of applications. FTI Air products have fewer parts, simpler design and are less prone to failure.
Specifications
Suction & Discharge Size : 3” x 3”
Porting Location : Center
Connection Types : FNPT, BSPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size : ¾” FNPT x ¾” FNPT
Capabilities
Maximum Flow Rate : 240 gpm (908 lpm)
Maximum Air Supply Pressure : 120 psi (8.3 bar)
Displacement Per Stroke : 0.98 gal (3.7 lit)
Minimum Air Inlet Pressure : 10 psig (0.7 bar)
Maximum Particle Size : 0.50” (12.7 mm)
Sound Pressure : 86.5 dB(A)
Operating Temperature : Determined by elastomers
Construction
Wetted Materials : 316SS or Aluminum
Diaphragm Materials : Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, or polyurethane
Air Valve : GFRPP, Aluminum
Ball Materials : Neoprene, Buna, Santoprene™, FKM, EPDM, or PTFE
Seat Materials : Aluminum, 316SS, PTFE, Hytrel®, Buna, Neoprene, FKM, EPDM, Santoprene™, or polyurethane
O-ring Materials Neoprene, Buna, FKM, EPDM, PTFE, or FEP/FKM
Dimensions & Weights
316 Stainless Steel Aluminum
Maximum Height : 36-3/8” (924 mm) 34-13/16” (884 mm)
Maximum Width : 24-9/32” (617 mm) 24-9/32” (617 mm)
Maximum Depth : 16-3/8” (416 mm) 16-3/8” (416 mm)
Weight : 235 lb (107 kg) 155 lb (70 kg)
Performance

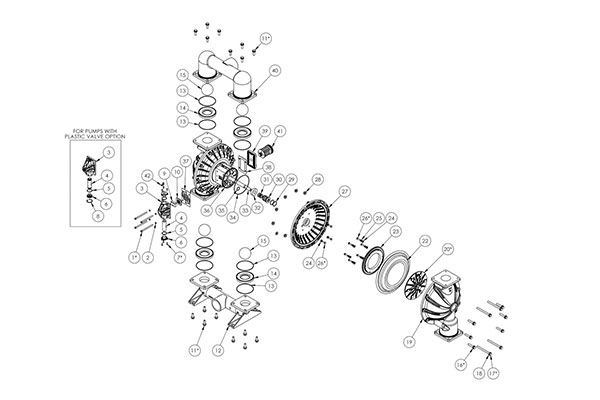

Spare Parts
